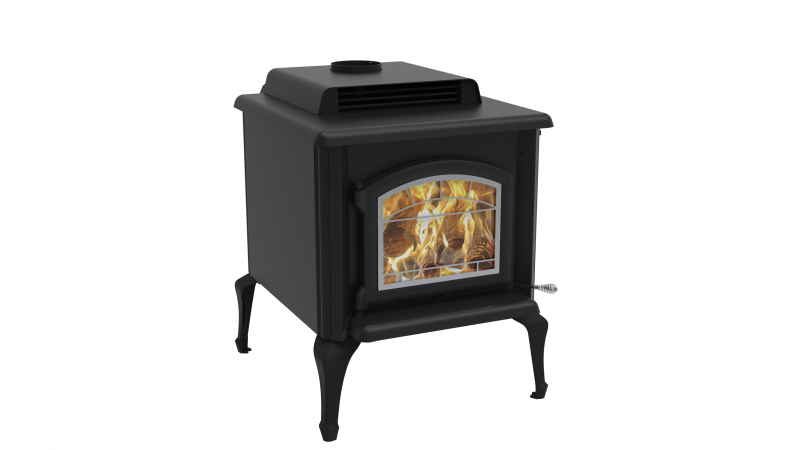

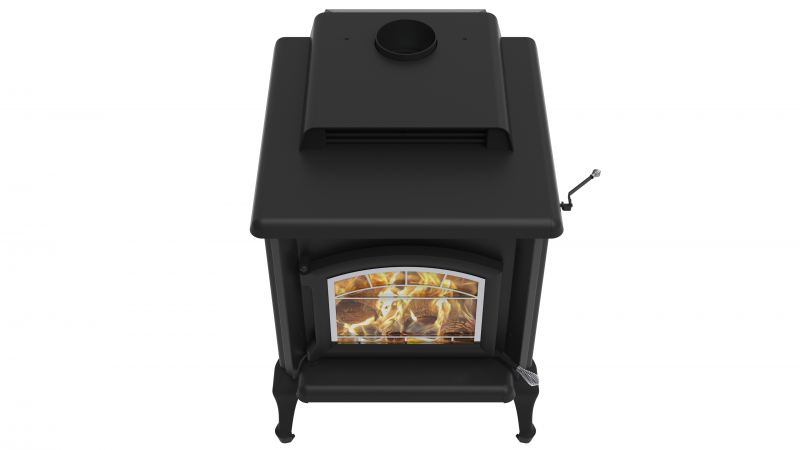

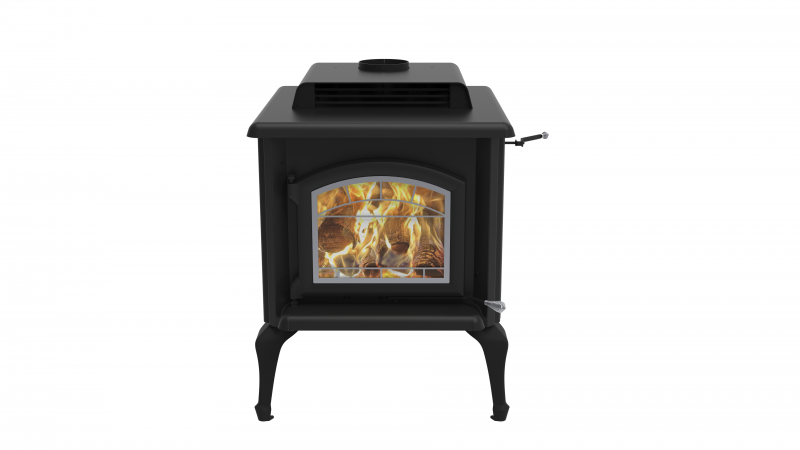

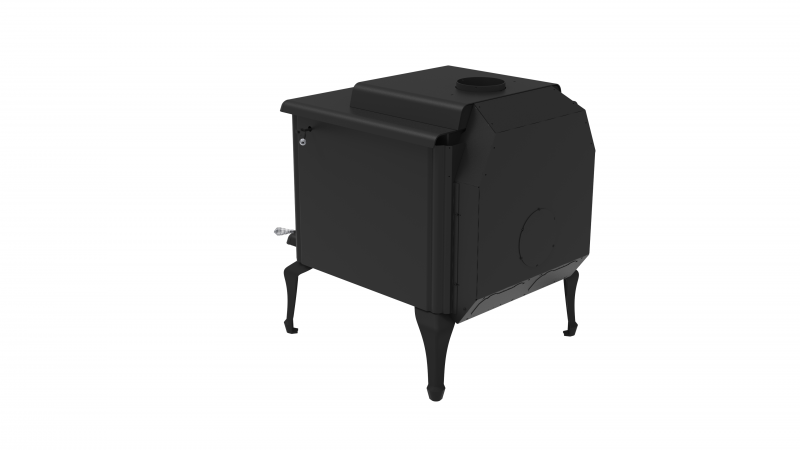

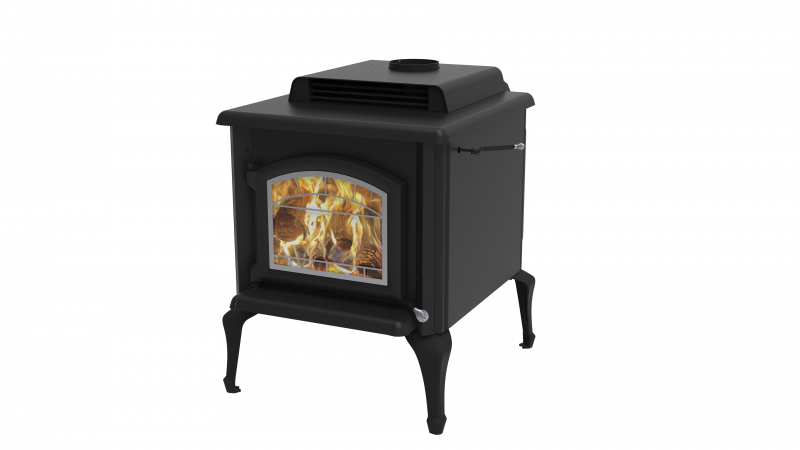

ULTIMATE TOR
J. A. ROBY | Model #PBULTTOR
Exclusive
Unmatched performance!
The ULTIMATE TOR, BMR exclusive, has a combustion chamber of 4.7ft³ and accepts 24" wood logs. It can easily warm up a house from 1,200 to 3,800 ft² and offers a heating capacity up to 120 000 BTU. Combining with the VENT460TOR (sold separately) allows the distribution of heat even more efficiently in a large room.
FEATURES
- One cast iron door model
- High efficiency CSA B415.1-10 cerrified appliance
- MONTREAL ISLAND APPROVED
- Recommended heating area sqi²) : 1200 – 3800
- 120,000 BTU (Dry cordwood)
- Color: Metallic black
- Model: Legs
- Heating by convection and radiation
- Glass air-wash system
- Baffle: Fibre ceramic
- Firebox lined with refractory bricks for better heat distribution
- Stainless steel secondary air system improving gas combustion
- Heat distributor ready for VENT460TOR
- Recommended chimney: 6"
- Optimum efficiency 78%
- Low emissions 1.30 g/h
- Log lentht 24"
- Tested as per applicable standards by intertek
Options
- Two fans (150CFM together) and 1 thermodisc kit (VENT)
- 460CFM blower with thermodisc and air deflector plate (VENT460TOR)
MSRP : Details in store
Certifications
- Type of fuel : Wood
- Recommended heating area : 1200 - 3800 pi²
- Combustion length : 4 to 18 hours
- Maximum output : 120,000 BTU/h
Dry cordwood - Firebox dimensions : Width 19 ¾"
Height 15 ½"
Depth 24"
- Maximum log length : 24"
- Exteriors dimensions : Width 29"
Height 37 13/16"
Depth 37 7/16" - Type of chimney : 2100° F. - 650° C
- Exaust pipe diameter : 6"
- Recommended chimney diameter : 6"
- Minimum chimney height : 12'
- Minimum clearances to combustibles : Back 10"
Lateral & corners 20"
Ceiling 84" (measured from floor) - Weight : 507 lbs
- Standard test - Canada emissions : CSA B415.1-10
- Standard test - safety : ULC S627 / UL 1482
- Warranty : Limited lifetime
