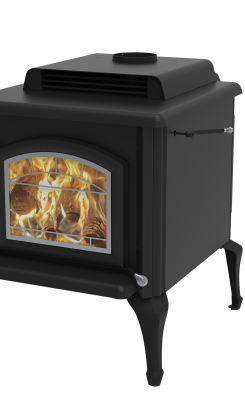

ULTIMATE TOR

ULTIMATE TOR

Wood stoves

Unmatched performance!

The ULTIMATE TOR, BMR exclusive, has a combustion chamber of 4.7ft³ and accepts 24" wood logs. It can easily warm up a house from 1,200 to 3,800 ft² and offers a heating capacity up to 120 000 BTU. Combining with the VENT460TOR (sold separately) allows the distribution of heat even more efficiently in a large room.

FEATURES

  • One cast iron door model
  • High efficiency CSA B415.1-10 cerrified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended heating area sqi²) : 1200 – 3800
  • 120,000 BTU (Dry cordwood)
  • Color: Metallic black
  • Model: Legs
  • Heating by convection and radiation
  • Glass air-wash system
  • Baffle: Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Heat distributor ready for VENT460TOR
  • Recommended chimney: 6"
  • Optimum efficiency 78%
  • Low emissions 1.30 g/h
  • Log lentht 24"
  • Tested as per applicable standards by intertek





                                Options

                                Two fans (150CFM together) and 1 thermodisc kit (VENT) -- 460CFM blower with thermodisc and air deflector plate (VENT460TOR) --

                                Specifications
                                Type of fuel : Wood
                                Recommended heating area : 1200 - 3800 pi²
                                Combustion length : 4 to 18 hours
                                Maximum output : 120,000 BTU/h
                                Dry cordwood
                                Firebox dimensions : Width 19 ¾"
                                Height 15 ½"
                                Depth 24"
                                Maximum log length : 24"
                                Exteriors dimensions : Width 29"
                                Height 37 13/16"
                                Depth 37 7/16"
                                Type of chimney : 2100° F. - 650° C
                                Exaust pipe diameter : 6"
                                Recommended chimney diameter : 6"
                                Minimum chimney height : 12'
                                Minimum clearances to combustibles : Back 10"
                                Lateral & corners 20"
                                Ceiling 84" (measured from floor)
                                Weight : 507 lbs
                                MADE IN CANADA :
                                Standard test - Canada emissions : CSA B415.1-10
                                Standard test - safety : ULC S627 / UL 1482
                                Exclusivité BMR
                                Warranty : Limited lifetime
