MESSENGER

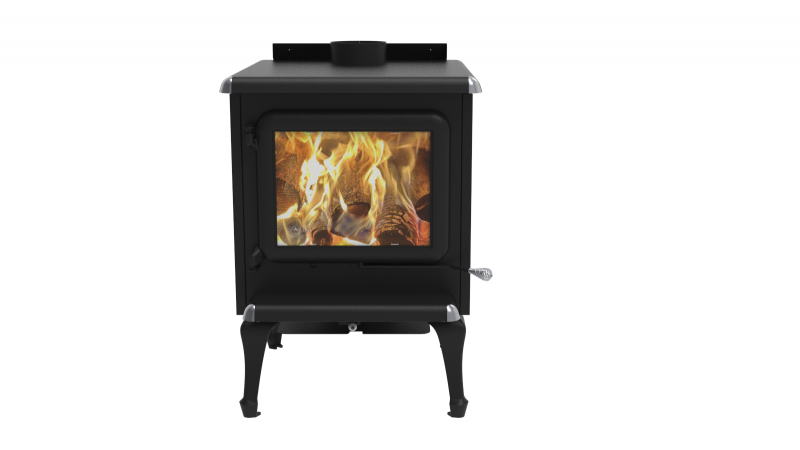

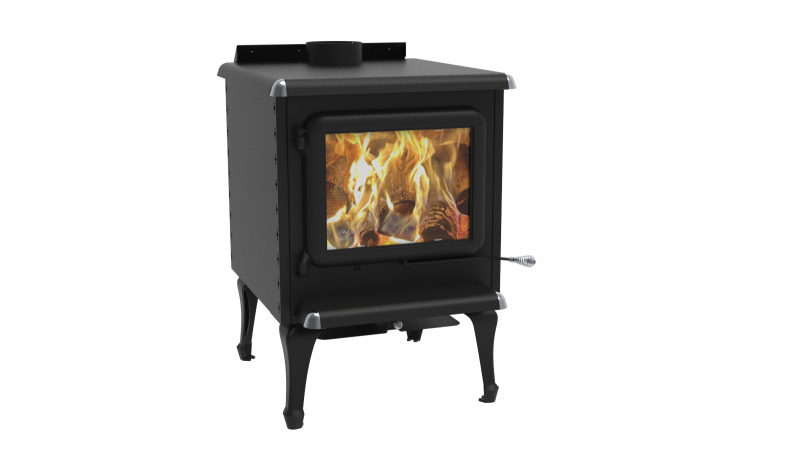

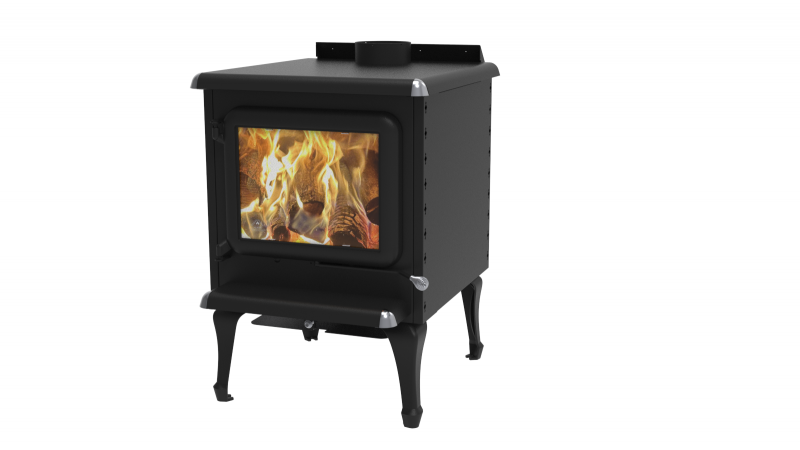

J. A. ROBY | Model #PBMEMESSENGER high efficiency wood stove
Features
- One cast iron square door model
- High efficiency US EPA NSPS 2020 certified
- Recommended heating Area (sq.st.) 1,000 - 3,000
- Color: metallic black
- Model: on legs
- Convection and radiation heating
- Self-cleaning system of the glass surface
- Low clearances to combustibles materials
- Ceramic wool baffle
- Outdoor air intake
- Firebox lined with refractory bricks for better heat distribution
- Stainless steel secondary air system improving gas combustion
- Recommended chimney: 6"
- Low emissions 1.56 gr/h
- LHV 77,75%
- Maximum Log lenght 22"
- Mobile home certified
- Tested as per applicable standards by Intertek
Options
- Outdoor air intake package kit (ECPAE)
- Chrome cast iron legs (4)
- 150 CFM fan
- 460 CFM blower (VENT460T+)
- 460 CFM blower with thermodisc (VENT460TH)
MSRP : Details in store
Certifications
- Type of fuel : Wood
- Recommended heating area : 1,000 - 3,000 pi²
- Maximum output : 55 107 BTU/h
- Firebox dimensions : Width 18"
Height 15-1/8"
Depth 22-1/2" - Door opening dimensions : 15-1/8" x 9-1/4"
- Maximum log length : 22"
- Exteriors dimensions : Width 26"
Height 36 5/8"
Depth 33 5/8" - Type of chimney : 2100° F.
- Exaust pipe diameter : 6"
- Recommended chimney diameter : 6"
- Minimum chimney height : 12'
- Minimum clearances to combustibles : Back 16 3/4"
Side 16"
Corner 8"
Top 84" (measured from floor)
From collar to back 14-3/4"
From collar to side 23-1/4" - Weight : 360 lbs
- Standard test - US emissions : US EPA NSPS 2020
- Standard test - Canada emissions : CSA B415.1-10
- Standard test - safety : CAN/ULC S627-00 UL 1482-2011
- Warranty : Limited lifetime
