Wood stoves
HUBBLE

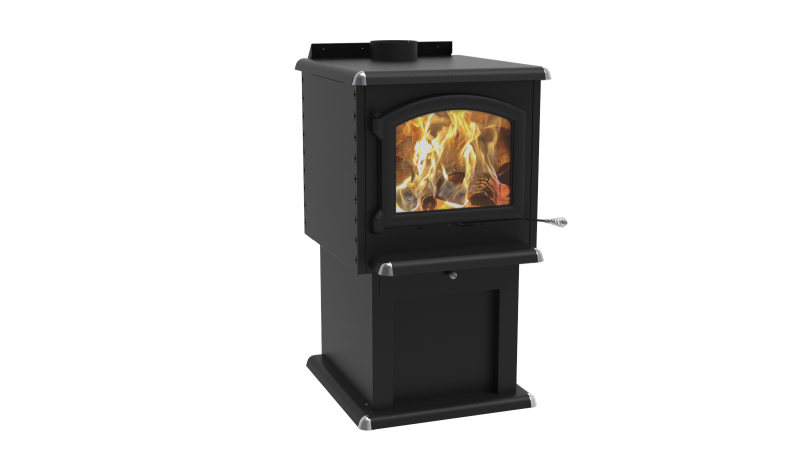

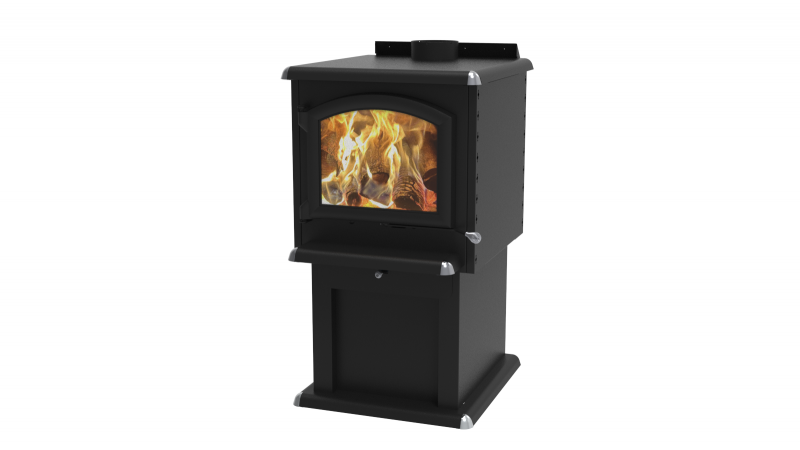

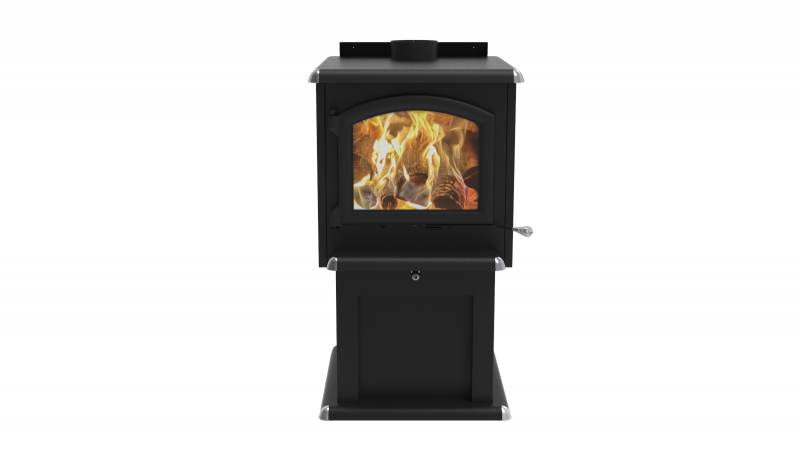

J. A. ROBY | Model #PBHUHUBBLE high efficiency wood stove US EPA NSPS 2020 certified provide with one cast iron arched door
Features
- One cast iron arched door
- High efficiency US EPA NSPS 2020 certified appliance
- Recommended heating Area (sq. ft.) :1,000 - 3,000
- Color: Metallic black
- Model: Piedestal
- Flat top
- Chrome handle
- Heating by convection and radiation
- Self-cleaning system of the glass surface
- Low clearances to combustible materials
- Ceramic wool baffle
- Outdoor air intake
- FIrebox lined with refractory bricks for better heat distribution
- Stainless steel secondary air system improving gas combustion
- Recommended chimney: 6"
- Low emissions 1.56 gr/h
- LHV 77,75%
- Recommended log length :16"
- Maximum log length: 22"
- Mobile home certified
- Tested as per applicable standards by Intertek
Options
- Two fans (150CFM together) and 1 thermodisc kit (VENT)
- Outdoor air intake package kit (ECPAE)
MSRP : Details in store
Certifications
- Type of fuel : Wood
- Recommended heating area : 1,000 - 3,000 pi²
- Maximum output : 55 107 BTU/h
- Firebox dimensions : Width 18"
Height 15-1/8"
Depth 22-1/2" - Maximum log length : 22"
- Exteriors dimensions : Width 26"
Height 45"
Depth 34-3/8" - Type of chimney : 2100° F.
- Exaust pipe diameter : 6"
- Recommended chimney diameter : 6"
- Minimum chimney height : 12'
- Minimum clearances to combustibles : Back 16 3/4"
Side 16"
Corner 8-3/4"
Top 84" (measured from floor)
From collar to back 12"
From collar to side 24-3/4" - Weight : 370 lbs
- Standard test - US emissions : US EPA NSPS 2020
- Standard test - Canada emissions : CSA B415.1-10
- Standard test - safety : CAN/ULC S627 et UL 1482
- Warranty : Limited lifetime
