HUBBLE

HUBBLE

Wood stoves

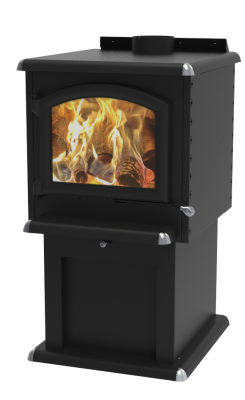

HUBBLE high efficiency wood stove US EPA NSPS 2020 certified provide with one cast iron arched door

Features

  • One cast iron arched door


  • High efficiency US EPA NSPS 2020 certified appliance
  • Recommended heating Area (sq. ft.) :1,000 - 3,000
  • Color: Metallic black
  • Model: Piedestal
  • Flat top
  • Chrome handle
  • Heating by convection and radiation
  • Self-cleaning system of the glass surface
  • Low clearances to combustible materials
  • Ceramic wool baffle
  • Outdoor air intake
  • FIrebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6"
  • Low emissions 1.56 gr/h
  • LHV 77,75%
  • Recommended log length :16"
  • Maximum log length: 22"
  • Mobile home certified
  • Tested as per applicable standards by Intertek




Options

Two fans (150CFM together) and 1 thermodisc kit (VENT) -- Outdoor air intake package kit (ECPAE) --

Specifications
Type of fuel : Wood
Recommended heating area : 1,000 - 3,000 pi²
Maximum output : 55 107 BTU/h
Firebox dimensions : Width 18"
Height 15-1/8"
Depth 22-1/2"
Maximum log length : 22"
Exteriors dimensions : Width 26"
Height 45"
Depth 34-3/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 3/4"
Side 16"
Corner 8-3/4"
Top 84" (measured from floor)
From collar to back 12"
From collar to side 24-3/4"
Weight : 370 lbs
US EPA 2020 Method 28R : US EPA 2020 NSPS CERTIFIED
WELL MADE HERE : WELL MADE HERE
Standard test - US emissions : US EPA NSPS 2020
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1
Standard test - safety : CAN/ULC S627 et UL 1482
Warranty : Limited lifetime
