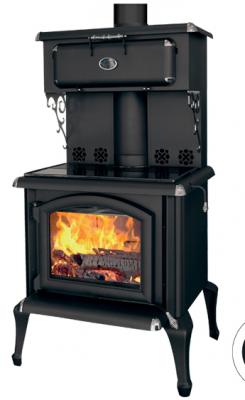

FORGERON COOKSTOVE

FORGERON COOKSTOVE

Woodburning cookstoves

The FORGERON wood-burning cookstove will give you all the heat you need when you need it with an average output of 95,000 BTU (dry cordwood). Enjoy peace of mind during power outages with this cookstove that features an overhead warmer and a cooking plate to cook or heat your meals. The FORGERON wood-burning cookstove is environmentally friendly, with emissions levels as low as 1.02 gr/h and a 79,46 % efficiency rating (LHV).  These results were obtained during official performance tests conducted in accordance with standard CSA B415.1-10, the Canadian environmental standard that is the equivalent of the US EPA standard.

Features

  • One cast iron door model
  • High efficiency CSA B415.1-10 certified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended Heating Area (sq.ft) : 1000 – 2,500
  • Color : Metallic black
  • Model : Legs
  • Heating by convection and radiation
  • Glass air-wash system
  • Easy to access ash drawer
  • Food warmer with thermometer
  • Handles, corner and chrome decorations
  • Low clearances to combustibles materials
  • Baffle : Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney : 6’’
  • Optimum efficiency 88%
  • Low emissions 1,02 g/h
  • LHV 79,46%
  • Maximum log lenght 19 inches
  • Mobile home approved (outdoor air intake required and offered in option)
  • Tested as per applicable standards by Intertek




Options

Decorative top chrome & mirror - small (TDDCHP) -- Two fans (150CFM together) and 1 thermodisc kit (VENT) -- Chrome cast iron legs -- Outdoor air intake (installed in plant) (TCPAE) --

Specifications

Type of fuel : Wood
Recommended heating area : 1000 - 2500 pi²
Combustion length : 3 to 5 hours
Maximum output : 95 000 BTU
Dry cordwood
Firebox dimensions : Width 19"
Height 10 7/8"
Depth 20"
Door opening dimensions : 15 ¾" x 10 ¼"
Maximum log length : 19"
Exteriors dimensions : Width 27 ¾"
Height 54"
Depth 30 ½"
Type of chimney : 2100° F. - 650° C
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum clearances to combustibles : Back 12"
Sides and corners 18"
Corner 18" - 45.7 cm
Ceiling (measured from floor) 84"
Weight : 440 lbs
Interior food warmer dimension : Width 24 ½"
Height 10"
Depth 12"
WELL MADE HERE :
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 :
Standard test - safety : ULC S627 / UL 1482
Warranty : Limited lifetime
