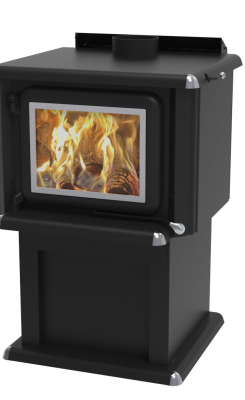

Forgeur R LX

Forgeur R LX

Wood stoves

Features

  • One cast iron door model with chromed trim door
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended Heating Area (sq. ft.): 1 000 - 2 500
  • Color: Metallic Black
  • Model: Pedestal
  • Heating by convection and radiation
  • Glass air-wash system
  • Chromed Handles and corners
  • Low clearances to combustible materials
  • Baffle: Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6''
  • Low emission 1,02 g/h
  • LHV: 79.46%
  • Maximum log lenght: 19''
  • Mobile home approved (outdoor air intake required and offered in option)
  • Tested as per applicable standards by Intertek




Options

Outdoor air intake package kit (ECPAE) -- Black enameled cast iron cooking plate, right (PLAQUECUID) -- Outdoor air intake (installed in plant) (TCPAE) -- 460 CFM blower (VENT460T+) -- 460 CFM blower with thermodisc (VENT460TH) --

Specifications
Type of fuel : Wood
Recommended heating area : 1000 - 2500 pi²
Combustion length : 5 to 8 hours
Maximum output : 95 000 BTU
Firebox dimensions : Width 18 ¼"
Height 10 3/4"
Depth 20"
Door opening dimensions : 16 ¼" x 10 3/8"
Maximum log length : 19"
Exteriors dimensions : Width 30 5/8"
Height 41 ¼"
Depth 30 5/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 ½"
Side 12"
Corner 10"
Weight : 445 lbs
MADE IN CANADA : Well made here
Standard test - US emissions : US EPA Method 28R
CSA B415.1-10 : CSA B415.1-10
Warranty : Limited lifetime
