MESSENGER LX

MESSENGER LX

Wood stoves

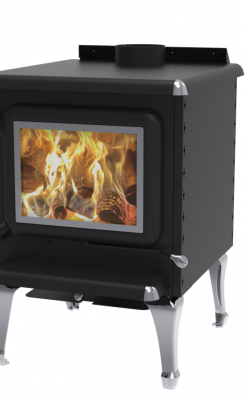

MESSENGER LX high efficiency wood stove

FEATURES

  • One cast iron square door model
  • High efficiency US EPA NSPS 2020 certified
  • Recommended heating Area (sq.st.) 1,000 - 3,000
  • Color: metallic black
  • Model: Chromed legs
  • Corners,handle and chromed trim door
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustibles materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6"
  • Low emissions 1.56 gr/h
  • LHV 77,75%
  • Maximum Log lenght 22"
  • Mobile home certified
  • Tested as per applicable standards by Intertek




Options

Two fans (150CFM together) and 1 thermodisc kit (VENT) -- Outdoor air intake package kit (ECPAE) -- 150 CFM fan -- 460 CFM blower (VENT460T+) -- 460 CFM blower with thermodisc (VENT460TH) --

Specifications
Type of fuel : Wood
Recommended heating area : 1,000 - 3,000 pi²
Combustion length : 4 to 14 hours
Maximum output : 100 000 BTU
Steady state : 77.75 %
Firebox dimensions : Width 18"
Height 15 1/8"
Depth 22 ½"
Door opening dimensions : 15 1/8 x 9¼
Maximum log length : 22"
Exteriors dimensions : Width 26"
Height 33 5/8"
Depth 33 5/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 11 ¼"
Side 16"
Corner 8 ¾"
Top 84" (measured from floor)
From collar to back 12"
From collar to side 24 ¾"
Weight : 360 lbs
US EPA 2020 Method 28R : US EPA 2020 Method 28R
MADE IN CANADA : Well made here
Standard test - US emissions : US EPA Method 28R
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1-10
Warranty : Limited lifetime
