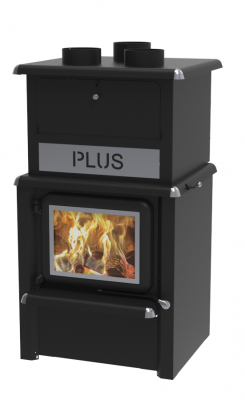

ATM 2500 PLUS LX

ATM 2500 PLUS LX

Wood stoves

WHAT IS THE OPTION «PLUS»

The option «PLUS» is designed to be used with the ATM 2500 PLUS to enhance comfort in your home. This

is an unique heat recovery system which increases the calorific value. Used with a 460 CFM blower. The

option PLUS distributes the heat more effectively and increases the stove's efficiency by 40%.

FEATURES

  • High efficiency CSA B415.1-10 certified appliance
  • One square cast iron door model
  • Color: Metallic Black
  • Chromed corners, handle and trim door
  • Model: Freestanding
  • Recommended Heating Area (sq. ft.) 1 000 - 3 500
  • Heating by convection and radiation
  • Glass air-wash system
  • Low clearance to combustible materials
  • Baffle: Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6''
  • Low emission 1.02 g/h
  • LHV 79.46%
  • Log lenght 19''
  • Mobile home and Novoclimat approved outdoor air intake required and offered in option
  • Tested as per applicable standards by Intertek




Options

Outdoor air intake package kit (ECPAE) -- Outdoor air intake (installed in plant) (TCPAE) -- 460 CFM blower (VENT460T+) -- 460 CFM blower with thermodisc (VENT460TH) --

Specifications
Type of fuel : Wood
Recommended heating area : 1000 - 2500 pi²
Combustion length : 6 to 22 hours
Maximum output : 95 000 BTU/h
Firebox dimensions : Width 18 1/4"
Height 10 3/4"
Depth 20"
Door opening dimensions : 16 1/4" x 10 3/8"
Maximum log length : 19"
Exteriors dimensions : Width 29 7/8"
Height 51 1/4"
Depth 31 7/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 1/2"
Side 12"
Corner 10"
Top 84" (measured from floor)
Weight : 510 lbs
WELL MADE HERE : Well made here
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1-10
Warranty : Limited lifetime
