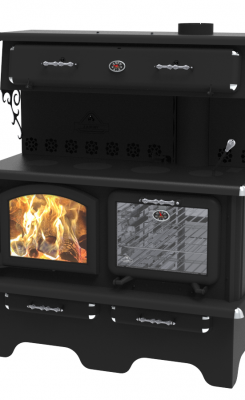

CUISINIÈRE 3.0

CUISINIÈRE 3.0

Woodburning cookstoves

With its new heat transfer system to the 5 walls oven, the CUISINIERE 3.0 is environmentally friendly with an emission level as low as 1.3 g/h and an efficiency of 78,6% (LHV); the results were obtain with official tests according to Canadian environmental standard CSA B415.1-10.

FEATURES

  • Model with two cast iron doors
  • High efficiency CSA B415.1-10 certified appliance
  • EPA Exempt certified
  • Recommended Heating Area (sq.ft) : 1000 – 2500
  • Color: Metallic black
  • Model: Freestanding
  • Convection and radiation heating system
  • Glass air-wash system on firebox side
  • Cooking area 16" X 47"
  • Glass oven door
  • Food warmer
  • Thermometers on oven and food warmer
  • Handles, corners and chrome ornaments
  • Low clearance to combustible material
  • Baffle: Fibre ceramic
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6’’
  • Low emissions 1,02 g/h
  • LHV 79,46 %
  • Log lenght 19"
  • Tested as per applicable standards by Intertek




Options

Decorative black top and mirror (TDDNM) -- Decorative chrome top and mirror (TDDCM) -- Black enameled cast iron cooking plate, right (PLAQUECUID) -- Black enameled cast iron cooking plate, left (PLAQUECUIG) --

Specifications
Type of fuel : Wood
Recommended heating area : 1 000 - 2 500 pi²
Combustion length : 5 to 8 hours
Maximum output : 95 000 BTU
Firebox dimensions : Width 18 ¼
Height 10 ¾"
Depth 20"
Door opening dimensions : 15 ¾" x 10 ¼"
Maximum log length : 19"
Exteriors dimensions : Width 51 ½"
Height 58 3/8"
Depth 28 5/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 3/8"
Side (Left) 12"
Side (Right) 7½"
Top 84" (measured from floor)
Weight : 610 lbs
Interior oven dimension : Width 17"
Height 11 ¾"
Depth 19"
US EPA 2020 Method 28R : US EPA 2020 Method 28R
MADE IN CANADA : Well made here
Standard test - US emissions : US EPA Method 28R
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1-10
Warranty : Limited lifetime
