FERRONNIER

FERRONNIER

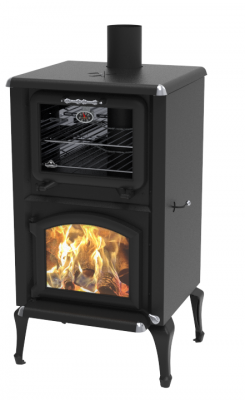

Woodburning cookstoves


Features

  • One cast iron arched door and one cast iron squared door
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended Heating Area (sq. ft) : 1000 - 2.500
  • Color : Metallic Black
  • Model : Legs
  • Chromed handles and corners
  • Oven door with glass
  • Thermometer on oven
  • 1 Oven rack included
  • Heating by convection and radiation
  • Glass air-wash system
  • Low clearances to combustible materials
  • Baffle : Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney : 6''
  • Low emissions 1,02 g/h
  • LHV 79.46%
  • Maximum log length : 19''
  • Mobile home approved (outdoor air intake required and offered in option)
  • Tested as per applicable standards by Intertek




Options

Outdoor air intake package kit (ECPAE) -- Additional oven rack for cookstove (CUISINIEREGF) -- Chrome cast iron legs -- Outdoor air intake (installed in plant) (TCPAE) -- 150 CFM fan -- 460 CFM blower (VENT460T+) -- 460 CFM blower with thermodisc (VENT460TH) --

Specifications
Type of fuel : Wood
Recommended heating area : 1000 - 2500 pi²
Maximum output : 95 000 BTU/h
Firebox dimensions : Width 18 1/4"
Height 10 3/4"
Depth 20"
Door opening dimensions : 16 1/4" x 10 3/8"
Maximum log length : 19"
Exteriors dimensions : Width 30 3/8"
Height 51 3/8"
Depth 30 5/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 1/2"
Side 10"
Corner 8"
Top 84" (measured from floor)
Weight : 490 lbs
WELL MADE HERE : Well made here
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1-10
Warranty : Limited lifetime
