FORNELLO

FORNELLO

Woodburning cookstoves

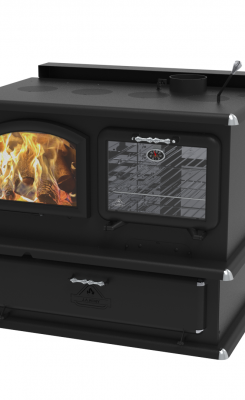

FORNELLO wood cookstove US EPA NSPS 2020 and CSA B415.1 certified

Features

  • One cast iron arched door on firebox and one cast iron squared door on oven side
  • High efficiency US EPA NSPS 2020 certified appliance
  • Recommended heating Area (sq.st.) 1,000 - 3,000
  • Color: metallic black
  • Model: freestanding
  • Handles and chrome corners
  • Oven with glass door
  • Thermometer on oven
  • Chrome oven rack
  • Four removable lids on top
  • Storage drawer in base
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustibles materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6"
  • Low emissions 1.56 gr/h
  • LHV 77,75%
  • Recommended log length 16"
  • Maximum log length 22"
  • Tested as per applicable standards by Intertek




Options

Outdoor air intake package kit (ECPAE) -- Additional oven rack for cookstove (CUISINIEREGF) --

Specifications
Type of fuel : Wood
Recommended heating area : 1,000 - 3,000 pi²
Combustion length : 4 to 14 hours
Maximum output : 110 000 BTU
Steady state : 77.75%
Firebox dimensions : Width 18"
Height 15 1/8"
Depth 22 ½"
Door opening dimensions : 15 1/8" x 9 ¼"
Maximum log length : 16"
Exteriors dimensions : Width 47 ¼"
Height 40 7/8"
Depth 34 ½"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 11 ¼"
Side 23"
Corner 15 ¾"
Top 84" (measured from floor)
From collar to back 12"
From collar to side 31 ¾"
Weight : 600 lbs
Interior oven dimension : Width 17"
Height 11 ¾"
Depth 19"
US EPA 2020 Method 28R : US EPA 2020 NSPS CERTIFIED
MADE IN CANADA : WELL MADE HERE
Standard test - US emissions : US EPA NSPS 2020
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1
Warranty : Limited lifetime
