APOLLO-R

APOLLO-R

Wood stoves

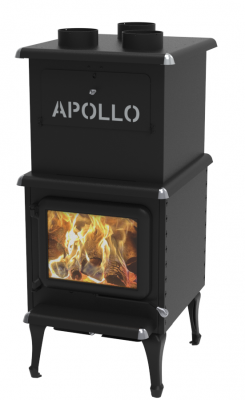

APOLLO-R wood stove, high efficiency US EPA NSPS 2020 certified with heat recovery unit on top

FEATURES

  • Model with one square cast iron door
  • High efficiency US EPA NSPS 2020 certified appliance
  • Recommended heating Area (sq.ft.) : 1,000 to 3,500
  • Color: metallic black
  • Model: on legs
  • Blower 460 TH included
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustible materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat diffusion
  • Stainless steel secondary air system to improving gas combustion
  • Recommended chimney : 6"
  • Low emissions 1,56 gr/h
  • LHV 77,75%
  • Maximum Logs lenght 22"
  • Mobile home certified
  • Tested as per applicable standards by Intertek




Options

Outdoor air intake package kit (ECPAE) -- Chrome cast iron legs (4) -- 150 CFM fan -- 460 CFM blower (VENT460T+) --

Specifications
Type of fuel : Wood
Recommended heating area : 1,000 - 3,500 pi²
Maximum output : 55 107 BTU/h
Firebox dimensions : Width 18"
Height 15-1/8"
Depth 22-1/2"
Door opening dimensions : 15-1/8" x 9-1/4"
Maximum log length : 22"
Exteriors dimensions : Width 26"
Height 56-1/4"
Depth 33-5/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 3/4"
Side 16"
Corner 8"
Top 84" (measured from floor)
From collar to back 14-3/4
From collar to side 23-1/4
Weight : 460 lbs
US EPA 2020 Method 28R : US EPA 2020 NSPS CERTIFIED
WELL MADE HERE : WELL MADE HERE
Standard test - US emissions : US EPA NSPS 2020
Warranty : Limited lifetime
