SCORE

SCORE

Wood stoves

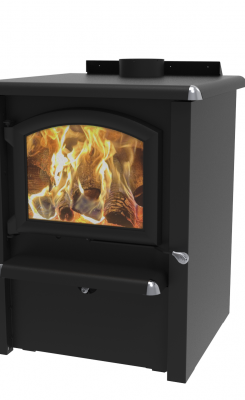

With its contemporary look, the SCORE on base is designed to enhance your home. Its heating capacity of up to 110 000 BTU (if used with dry cordwood) is sure to please. High efficiency wood stove US EPA NSPS 2020 and CSA B415.1 certified

Features

  • One cast iron arched door model
  • High efficiency US EPA NSPS 2020 and CSA B415.1 certified
  • Recommended heating Area (sq.st.) 1,000 - 3,000
  • Color: metallic black
  • Model: Freestanding
  • Chrome handle and corners
  • Convection and radiation heating
  • Self-cleaning system of the glass surface
  • Low clearances to combustibles materials
  • Ceramic wool baffle
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6"
  • Low emissions 1.56 gr/h
  • LHV 77,75%
  • Recommended log length: 16"
  • Maximum log length: 22"
  • Mobile home certified
  • Tested as per applicable standards by Intertek




Options

Two fans (150CFM together) and 1 thermodisc kit (VENT) -- Outdoor air intake package kit (ECPAE) -- 460 CFM blower with thermodisc (VENT460TH) --

Specifications
Type of fuel : Wood
Recommended heating area : 1,000 - 3,000 pi²
Combustion length : 4 to 14 hours
Maximum output : 110 000 BTU/h
Steady state : 77.75 %
Firebox dimensions : Width 18"
Height 15-1/8"
Depth 22-1/2"
Maximum log length : 22"
Exteriors dimensions : Width 28-1/8"
Height 36-5/8"
Depth 34-1/4"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 11-1/4"
Side 16"
Corner 8-3/4"
Top 84" (measured from floor)
From collar to back 12"
From collar to side 24-3/4"
Weight : 370 lbs
US EPA 2020 Method 28R : US EPA 2020 NSPS CERTIFIED
WELL MADE HERE : WELL MADE HERE
Standard test - US emissions : US EPA NSPS 2020
Standard test - Canada emissions : CSA B415.1-10
Standard test - safety : CAN/ULC S627 et UL 1482
Warranty : Limited lifetime
