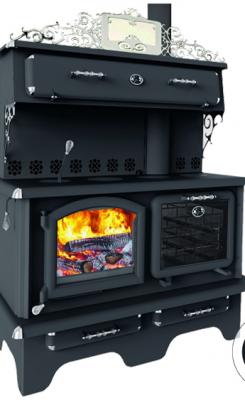

CUISINIERE HH

CUISINIERE HH

Woodburning cookstoves

In order to revive the great cookstoves of the past, we've recreated this newer version with the best design evoking the period of our ancestors. Like in the old days, warm up your home and enjoy one of your favorites foods cooked directly in the incorporated oven or keep your meal warm in the food warmer while you sip your cocktail. Moreover, this cookstove is environmentally friendly with an emission level as low as 1.02 g/h and an efficiency of 79,46 % (LHV); the results were obtain with official tests accordind to Canadian environmental standard CSA B415.1-10 (The Canadian equivalent of the U.S. EPA environmental standard).

Features

  • Model with two cast iron doors
  • High efficiency CSA B415.1-10 certified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended Heating Area (sq.ft) : 1500 – 2300
  • Color: Metallic black
  • Model: Pedestal
  • Handles, corners and chrome ornaments
  • Decorative chrome and mirror top
  • Convection and radiation heating system
  • Glass air-wash system on firebox side
  • Easy to access ash drawer
  • Cooking area 16" X 47"
  • Oven door with glass
  • Food warmer
  • Thermometers on oven and food warmer
  • Low clearance to combustible material
  • Baffle: Fibre ceramic
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6’’
  • Optimum efficiency 88%
  • Low emissions 1,02 g/h
  • LHV 79,46 %
  • Log lenght 19"
  • Tested as per applicable standards by Intertek




Options

Black enameled cast iron cooking plate, right (PLAQUECUID) -- Black enameled cast iron cooking plate, left (PLAQUECUIG) --

Specifications
Type of fuel : Wood
Recommended heating area : 1500 - 2300 pi²
Combustion length : 3 to 5 hours
Maximum output : 95,000 BTU
Dry cordwood
Firebox dimensions : Width 18-5/8"
Height 10-7/8"
Depth 20"
Door opening dimensions : 15-¾" x 10-¼"
Maximum log length : 19"
Exteriors dimensions : Width 50-¼"
Height 64-¾"
Depth 28-½"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 12"
Lateral and corners 18"
Ceiling 84" (measured from floor)
Weight : 580 lbs
Interior food warmer dimension : Width 46-1/8"
Height 10-1/8"
Depth 13-¾"
Interior oven dimension : Width 17 1/8"
Height 14"
Depth 19-1/8"
Volume 2.66 cu.ft.
WELL MADE HERE :
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 :
Standard test - safety : ULC S627-00 / UL 1482-7
Exclusivité HOME HARDWARE
Warranty : Limited lifetime
