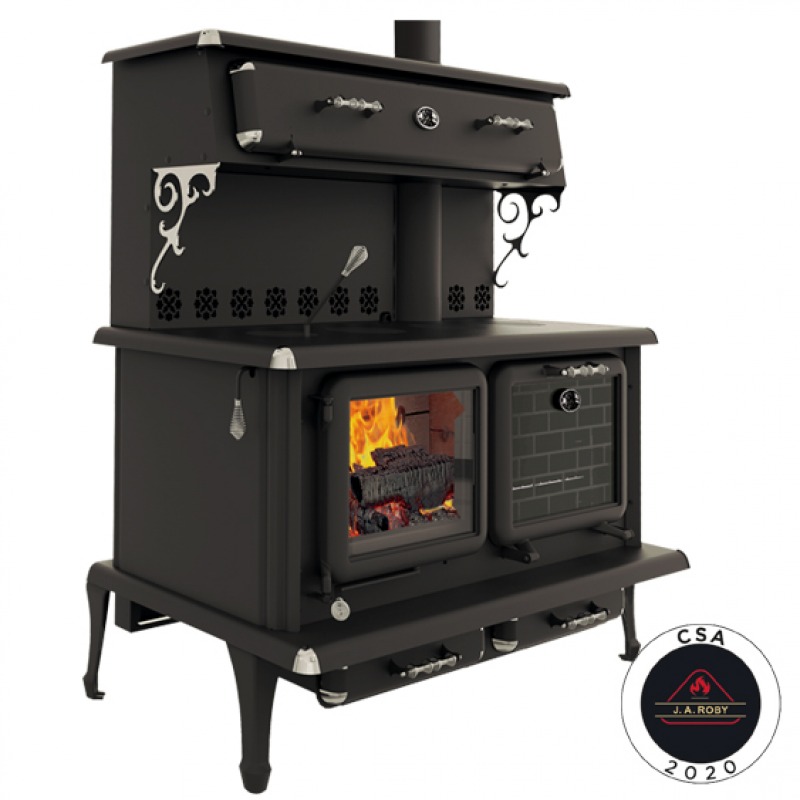

CUISINIERE SE

J. A. ROBY | Model #CUISEN

The great cookstoves of the past were recreated with this new contemporary design. Like our ancestor, warm up your home and enjoy one of your favorites foods cooked directly in the oven or keep your meal warm in the upper food warmer while sipping your cocktail. The CUISINIERE SE represent an essential ally for your house as well as your cottage

Features

Model with two cast iron doors (chrome available as an option)
High efficiency CSA B415.1-10 certified appliance
MONTREAL ISLAND APPROVED
Recommended Heating Area (sq.ft.): 1500 – 2300
Color: Metallic black
Model: Legs
Convection and radiation heating system
Air-wash system on firebox side
Glass air-wash system
Easy to access ash drawer
Cooking area 16" X 47"
Glass oven door
Food warmer
Thermometers on oven and foor warmer
Handles, corners and chrome ornaments
Low clearance to combustible material
Baffle: Fibre ceramic
Outdoor air intake
Firebox lined with refractory bricks for better heat distribution
Stainless steel secondary air system improving gas combustion
Recommended chimney: 6’’
Optimum efficiency 88%
Low emissions 1.02 g/h
LHV 79,46 %
Log lenght 19"
Tested as per applicable standards by Intertek

Options

Decorative black top and mirror (TDDNM)
Decorative chrome top and mirror (TDDCM)
Chrome trim door (B-MPCH)
Chrome cast iron legs
Black enameled cast iron cooking plate, right (PLAQUECUID)
Black enameled cast iron cooking plate, left (PLAQUECUIG)

MSRP : Details in store

Certifications

Print Send to a friend

Specifications
Pieces
Accessories

Type of fuel : Wood
Recommended heating area : 1500 to 2300 pi²
Combustion length : 3 to 5 hours
Maximum output : 95,000 BTU
Dry cordwood
Firebox dimensions : Width 18-5/8"
Height 10-7/8"
Depth 20"
2.87 ft³
Door opening dimensions : 15-¾" x 10-¼"
Maximum log length : 19"
Exteriors dimensions : Width 50-¼"
Height 54-1/8"
Depth 28-½"
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 12"
Lateral and corners 18"
Ceiling (measured from floor) 84"
Weight : 580 lbs
Interior food warmer dimension : Width 46-1/8"
Height 10-1/8"
Depth 13-¾"
Interior oven dimension : Width 17 1/8"
Height 14"
Depth 19 1/8"
Volume 2,66 cu.ft.
Standard test - Canada emissions : CSA B415.1-10
Standard test - safety : ULC S627-00 / UL 1482-7
Warranty : Limited lifetime
