MAGNUM

MAGNUM

Wood stoves

UNMATCHED POWER!

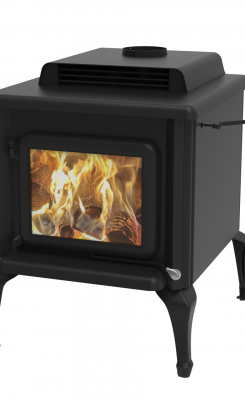

The MAGNUM has a combustion chamber of 4.7 ft³ and its exterior dimension are 37 13/16” high by 29” wide by 37 7/16” depth and it easily accepts wood logs of 25”. Like the  ULTIMATE 2015, the MAGNUM has an unmatched power and  can easily warm up a house with a dimension  up to 3 800 ft². Fan kit is also available as an option.

Features

  • One cast iron door model
  • High efficiency CSA B415.1-10 certified appliance
  • MONTREAL ISLAND APPROVED
  • Recommended Heating Area (sq.ft) : 1200 – 3800
  • 120,000 BTU (Dry cordwood)
  • Color : Metallic black
  • Model : Legs
  • Heating by convection and radiation
  • Glass air-wash system
  • Baffle : Fibre ceramic
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney : 6’’
  • Optimum efficiency 78%
  • Low emissions 2,4 g/h
  • Log lenght 25’’
  • Tested as per applicable standards by Intertek

Options

Adapter of two 6" ducts, 460 CFM blower and thermodisc kit (VENTULT) -- Two fans (150CFM together) and 1 thermodisc kit (VENT) -- Chrome trim door (B-MPCH) -- Chrome cast iron legs --

Specifications
Type of fuel : Wood
Recommended heating area : 1200 to 3800 ft²
Combustion length : 4 to 18 hours
Maximum output : 120,000 BTU
Dry cordwood
Firebox dimensions : Width 20 ½"
Height 15 ½"
Depth 25 ¼"
4.47 ft³
Maximum log length : 25"
Exteriors dimensions : Width 29"
Height 37 13/16"
Depth 37 7/16"
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 10"
Lateral & corners 20"
Ceiling (measured from floor) 84"
Weight : 500 lbs
WELL MADE HERE :
Standard test - Canada emissions : CSA B415.1-10
Standard test - safety : ULC S627 / UL 1482
Warranty : Limited lifetime
