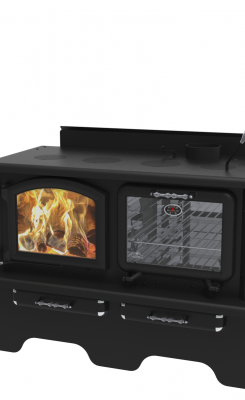

EXO

EXO

Woodburning cookstoves


Features

  • Model with two cast iron doors
  • High efficiency CSA B415.1-10 certified appliance
  • Recommended heating area (sq.ft): 1000 - 2500
  • EPA Exempt certified
  • Color: Metallic black
  • Handles, corners and chrome ornaments
  • Model: Freestanding
  • Convection and radiation heating system
  • Air-wash system on firebox system
  • Glass oven door
  • Storage drawers
  • Cooking area 16" X 47"
  • Thermometer on oven
  • Low clearance to combustible material
  • Baffle: Fibre ceramic
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recomanded chimney: 6"
  • Low emissions 1.02 g/h
  • LHV 79,46 %
  • Log lenght 19"
  • Tested as per applicable standards by Intertek




Options

Outdoor air intake package kit (ECPAE) -- Additional oven rack for cookstove (CUISINIEREGF) -- Black enameled cast iron cooking plate, right (PLAQUECUID) -- Black enameled cast iron cooking plate, left (PLAQUECUIG) -- Outdoor air intake (installed in plant) (TCPAE) --

Specifications
Type of fuel : Wood
Recommended heating area : 1 000 - 2 500 pi²
Maximum output : 95 000 BTU/h
Firebox dimensions : Width 18 1/4"
Height 10 3/4"
Depth 20"
Door opening dimensions : 15 3/4" x 10 1/4"
Maximum log length : 19"
Exteriors dimensions : Width 51 1/2"
Height 39 1/8"
Depth 28 5/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 3/8"
Side 12"
Corner 10"
Top 84" (measured from floor)
Weight : 500 lbs
US EPA 2020 Method 28R : US EPA 2020 Method 28R
WELL MADE HERE : Well made here
Standard test - US emissions : US EPA Method 28R
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1-10
Warranty : Limited lifetime
