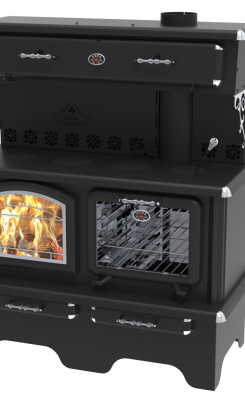

CUISINIÈRE 3.0 TOR

CUISINIÈRE 3.0 TOR

Woodburning cookstoves

Are you a fan of traditionnal cooking? Then the CUISINIÈRE TOR 3.0, exclusive to BMR, was made for you! In addition to offering two cooking spaces (oven and cooking surfaces) this appliance allows you to warm up your home, with recommended areas ranging from 1000 to 2500 sq ft. The CUISINIÈRE TOR 3.0 is equipped with a new heat transfer system to the 5 walls oven. The CUISINIÈRE TOR 3.0 respects the environment with emissions levels as low as 1.3 g/h and an efficiency of 78.6%.

FEATURES

  • Model with two cast iron doors
  • High efficiency CSA B415.1-10 certified appliance
  • EPA Exempt certified
  • Recommended heating area (sq.ft): 1000 - 2500
  • Color: Metallic black
  • Decorative chrome trim door (firebox side)
  • Handles, corners and chrome ornaments
  • Model: Freestanding
  • Convection and radiation heating system
  • Air-wash system on firebox system
  • Glass oven door
  • Cooking area 16" X 47"
  • Food warmer
  • Thermometers on oven and food warmer
  • Low clearance to combustible material
  • Baffle: Fibre ceramic
  • Outdoor air intake
  • FIrebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustin
  • Recomanded chimney: 6"
  • Low emissions 1.02 g/h
  • LHV 79,46 %
  • Log lenght 19"
  • Tested as per applicable standards by Intertek




Options

Decorative black top and mirror (TDDNM) -- Decorative chrome top and mirror (TDDCM) -- Outdoor air intake package kit (ECPAE) -- Additional oven rack for cookstove (CUISINIEREGF) -- Black enameled cast iron cooking plate, right (PLAQUECUID) -- Black enameled cast iron cooking plate, left (PLAQUECUIG) --

Specifications
Type of fuel : Wood
Recommended heating area : 1000 - 2500 pi²
Maximum output : 95 000 BTU/h
Firebox dimensions : Width 18 1/4"
Height 10 3/4"
Depth 20"
Door opening dimensions : 15 3/4" x 10 1/4"
Maximum log length : 19"
Exteriors dimensions : Width 51 ½"
Height 58 3/8"
Depth 28 5/8"
Type of chimney : 2100° F.
Exaust pipe diameter : 6"
Recommended chimney diameter : 6"
Minimum chimney height : 12'
Minimum clearances to combustibles : Back 16 3/8"
Side 12"
Corner 10"
Top 84" (measured from floor)
Weight : 610 lbs
US EPA 2020 Method 28R : US EPA 2020 Method 28R
WELL MADE HERE : Well made here
Standard test - US emissions : US EPA Method 28R
Standard test - Canada emissions : CSA B415.1-10
CSA B415.1-10 : CSA B415.1-10
Exclusivité BMR
Warranty : Limited lifetime
