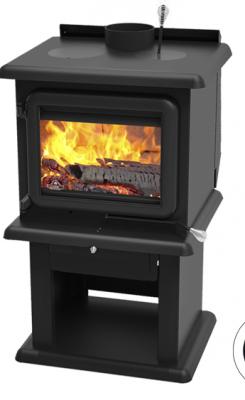

BLACK ANTARES

BLACK ANTARES

Wood stoves

ANTARES US EPA 2020 Method 28R and CSA B415.1-10 certified, the new wood burning appliance is part of to the new series "ETOILE" produced in Quebec by J. A. ROBY. This is a powerful, compact and ecological model. For its style  and round shape, the ANTARES is more attractive than ever and it can be practically matched with any kind of decors. In addition, it is certified for mobile homes. ANTARES is designed with small dimensions but it has a surprisingly heating capacity. Just as wood stoves of past century, this model has removable covers for cooking. The ANTARES also features a tested and certified space for secure wood storage under the appliance.

Features

  • US EPA 2020 Method 28R and CSA B415.1-10 certified appliance
  • One square cast iron door model
  • Recommended heating area (sq.ft.) 500 - 1800
  • Color: Metallic black
  • Model: Pedestal
  • Two removables lids with lid lifter for easy cooking on top
  • Wood storage area under the stove tested and certified
  • Two fans (75 CFM ea.) and one thermodisc kit
  • Heating by radiation
  • Glass air-wash system
  • Low clearances to combustibles materials
  • Baffle: Ceramic fiber
  • Outdoor air intake
  • Easy acces ash drawer
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6"
  • Optimum efficiency 72,9%
  • Low emissions 1.43 g/h
  • Log length 18" (lateral)
  • Mobile home approved
  • Tested as per applicable standards by Intertek




Options

Chrome corners (CC) -- Chrome trim door (B-MPCH) -- Black enameled cast iron cooking plate (PLAQUECUICR) -- Chrome handles --

Specifications
Type of fuel : Wood
Recommended heating area : 500 - 1800 pi²
Combustion length : 3 to 8 hours
Maximum output : 70 000 BTU/h
Firebox dimensions : Width 18 3/8"
Height 10 7/8"
Depth 15 ¾"
Door opening dimensions : 15 5/8" x 9 1/8"
Maximum log length : 18"Lateral
Exteriors dimensions : Width 26 7/8"
Height 41 3/8"
Depth 25 ½"
Type of chimney : 2100° F. - 650° C
Exaust pipe diameter : 6" - 15.24 cm
Recommended chimney diameter : 6" - 15.24 cm
Minimum chimney height : 12' - 3.66 m
Minimum clearances to combustibles : Back 10"
Side 20"
Corner 8"
Weight : 297 lbs
US EPA 2020 Method 28R : US EPA 2020 Method 28R CERTIFIED
WELL MADE HERE : WELL MADE HERE
Standard test - US emissions : US EPA 2020 Method 28R
Standard test - Canada emissions : CSA B415.1-10
Standard test - safety : ULC S627-21 UL 1482-2011
Warranty : Limited lifetime
