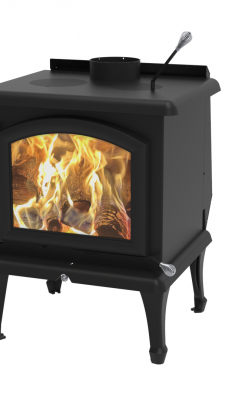

POLARIS

POLARIS

Wood stoves

POLARIS US EPA 2020 Method 28R and CSA B415.1-10 certified, the new wood burning appliance is part of to the new series "ETOILE" produced in Quebec by J. A. ROBY. This is a powerful, compact and ecological model. For its style  and round shape, the POLARIS is more attractive than ever and it can be practically matched with any kind of decors. In addition, it is certified for mobile homes. POLARIS is designed with small dimensions but it has a surprisingly heating capacity. Just as wood stoves of past century, this model has removable covers for cooking.

Features

  • US EPA 2020 Method 28R and CSA B415.1-10 certified appliance
  • One arched cast iron door model
  • Recommended heating area (sq.ft.) 500 - 1800
  • Color: Metallic black
  • Model: Legs
  • Two removables lids with lid lifter for easy cooking on top
  • Heating by radiation
  • Glass air-wash system
  • Low clearances to combustibles materials
  • Baffle: Ceramic fiber
  • Outdoor air intake
  • Firebox lined with refractory bricks for better heat distribution
  • Stainless steel secondary air system improving gas combustion
  • Recommended chimney: 6"
  • Low emissions 1.43 Gr/h
  • Log length 18" (lateral)
  • Mobile home approved
  • Tested as per applicalbe standards by Intertek




Options

Chrome corners (CC) -- Two fans (150CFM together) and 1 thermodisc kit (VENT) -- Chrome cast iron legs -- Black enameled cast iron cooking plate (PLAQUECUICR) -- Chrome handles --

Specifications
Type of fuel : Wood
Recommended heating area : 500 - 1800 sq. ft.
Combustion length : 3 to 8 hours
Maximum output : 70 000 BTU/h
Firebox dimensions : Width 19"
Height 10 7/8"
Depth 15 ¾"
Door opening dimensions : 15" x 9 1/8"
Maximum log length : 18"
Exteriors dimensions : Width 26 7/8"
Height 33"
Depth 25 ½"
Type of chimney : 2100° F. - 650° C
Exaust pipe diameter :
Recommended chimney diameter : 6
Minimum chimney height : 12
Minimum clearances to combustibles : Back 10"
Side 20"
Corner 8"
Ceilling 84" (Measured from floor)
Weight : 266 lbs
US EPA 2020 Method 28R :
WELL MADE HERE :
Standard test - US emissions : US EPA 2020 Method 28R
Standard test - Canada emissions : CSA B415.1-10
Standard test - safety : ULC S627-21 UL 1482-2011
Warranty : Limited lifetime
